8290-194 WOODWARD Debugger unit

Price:

Product basic information
Manufacturer: Woodward
Model: 8290-194
Belonging to the famous 505 series
Supports multiple communication protocols and can be smoothly integrated with the existing control system of the factory
Core application: Designed specifically for speed control and protection of steam turbines
8290-194 controller has stable performance and high reliability

Categories: WOODWARD
Tags: - Actuator 8290-194 controller debugger module Motor touch screen WOODWARD

8290-194 WOODWARD Debugger unit

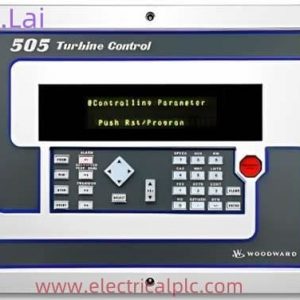

The 8290-194 is a microprocessor-based digital governor controller produced by Woodward, belonging to its classic 505 series.
It is primarily designed for speed control and protection of steam turbines. Below is a detailed introduction to this product:

I. Product Overview

Brand and Model: Woodward 8290-194
Series: 505 Series Digital Governor
Type: Microprocessor-based controller
Purpose: Specifically designed for steam turbines to control their speed and provide overspeed protection.

II. Core Functions

Speed Control:
- 8290-194 Precisely controls the speed of steam turbines by adjusting steam inlet flow.
- Supports single-range or split-range actuators to accommodate turbines of different sizes.
Overspeed Protection:
- Incorporates triple independent overspeed protection logic to ensure rapid shutdown in case of overspeed, preventing equipment damage.
- Provides an overspeed test button for convenient on-site testing of protection functions.
Emergency Shutdown:
- Equipped with an emergency stop button for immediate shutdown in emergency situations.
System Protection:
- - Automatically switches control modes upon sensor failure to ensure uninterrupted system operation.
  - Offers local/remote control priority selection to adapt to different operational scenarios.

A Brief Discussion on PSSuniversal Controller

The controller of PSS 4000 automation system carries our rich application technology. With various functions, the most diverse applications can be implemented. In addition,
PLC controllers marked with – R have special certification. Moreover, they comply with standards in the railway industry, elevators/lifts, and fire protection applications. For harsh environments,
provide a robust PLC controller (- T) that can be used in environments with temperatures ranging from -40 ° C to 70 ° C.
The PSSuniversal multi controller is suitable for use on machines or in small factories. When used with I/O modules, you can use these controllers to create customized control systems for your personalized requirements.
The PSSuniversal controller can be used as an independent control system or integrated into a system network equipped with PSSuniversal PLC, PSSuniversal I/O, and network components.
Suitable for machine or small device applications. Configure and program PSS controller using PASmulti graphic program editor.

III. Technical Specifications

Power Supply: 18-32 VDC, supporting 24VDC input.
Display: Two-line x 24-character LED display for clear indication of operating status and parameters.
Enclosure: NEMA 4X or IEC 60529 IP56 rated for protection against harsh industrial environments.
Inputs/Outputs:
- Inputs: 6 programmable current inputs, 16 discrete contact inputs.
- Outputs: 2 actuator outputs, 8 relay outputs, 6 programmable current outputs.
Communication Interfaces: 8290-194 Supports RS-232, RS-422, and RS-485 hardware interfaces for easy integration with host computers or other devices.
Software: Equipped with OpView™ and 505View software for parameter configuration, monitoring, and fault diagnosis.
Operating Temperature: -20 to +60°C (some models support -4 to +140°F).
Storage Temperature: -40 to +85°C (some models support -40 to +185°F).
8290-194 Weight: Approximately 9.11 pounds (4.13 kilograms).

IV. Application Scenarios

Steam Turbine Control: 8290-194Suitable for steam turbines of various sizes, including industrial steam turbines, small grid turbo-generators, and turboexpanders.
Single Extraction and Admission Applications: Designed for operating steam turbines in single extraction and/or admission applications.
On-Site Programming: Allows on-site operators to program and adjust parameters through an integrated operator control panel, adapting to different operating conditions.

V. Product Advantages

High Reliability:
- Microprocessor-based design ensures precise control and stability.
- Triple independent overspeed protection logic provides multiple layers of safety.
Flexibility:
- Supports various actuator and sensor configurations to accommodate different turbine models.
- Offers a rich set of input/output interfaces for easy system expansion and integration.
Ease of Use:
- Two-line x 24-character LED display provides an intuitive operating interface.
- A 30-key multifunctional keyboard simplifies parameter configuration and operation.
Compatibility:
- Supports multiple communication protocols for easy integration with DCS, PLC, and other systems.
- Provides OpView™ and 505View software for remote monitoring and fault diagnosis.
